FTIR Gas Remote Sensing
01
FTIR Gas Remote Imaging-Portable Type
Product Introduction

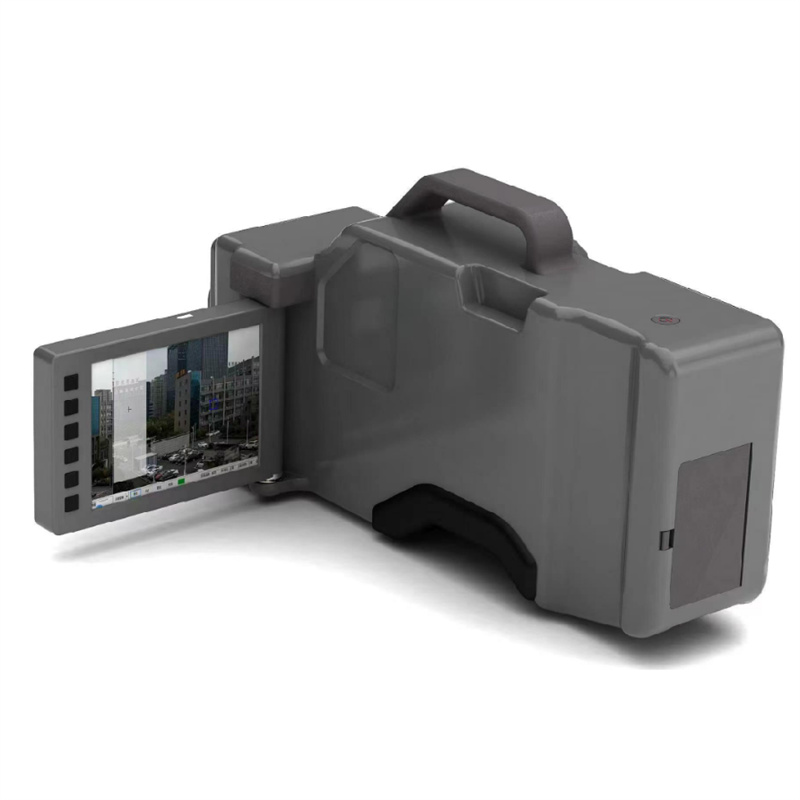

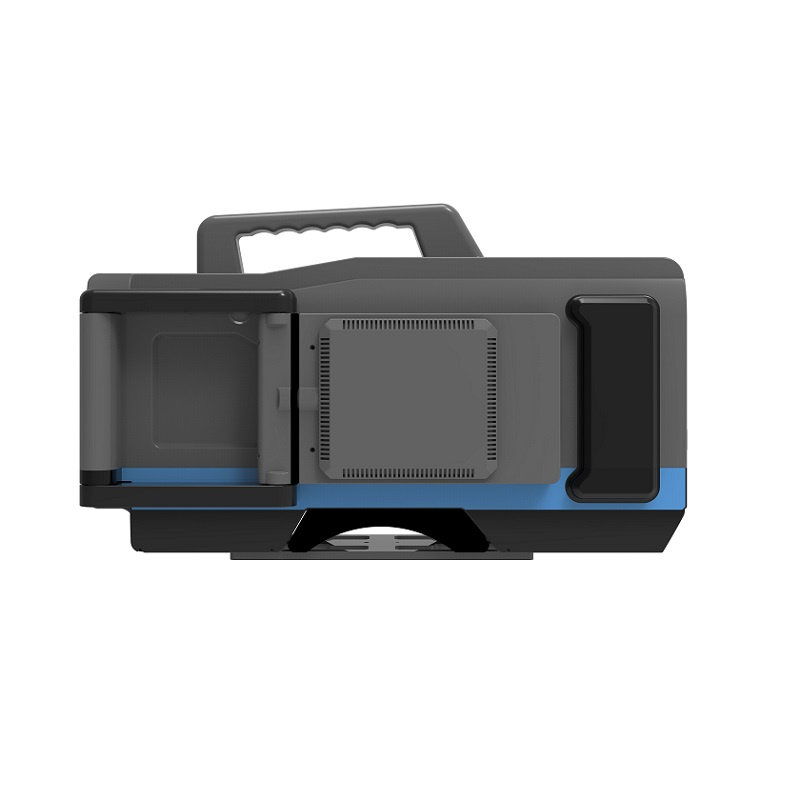

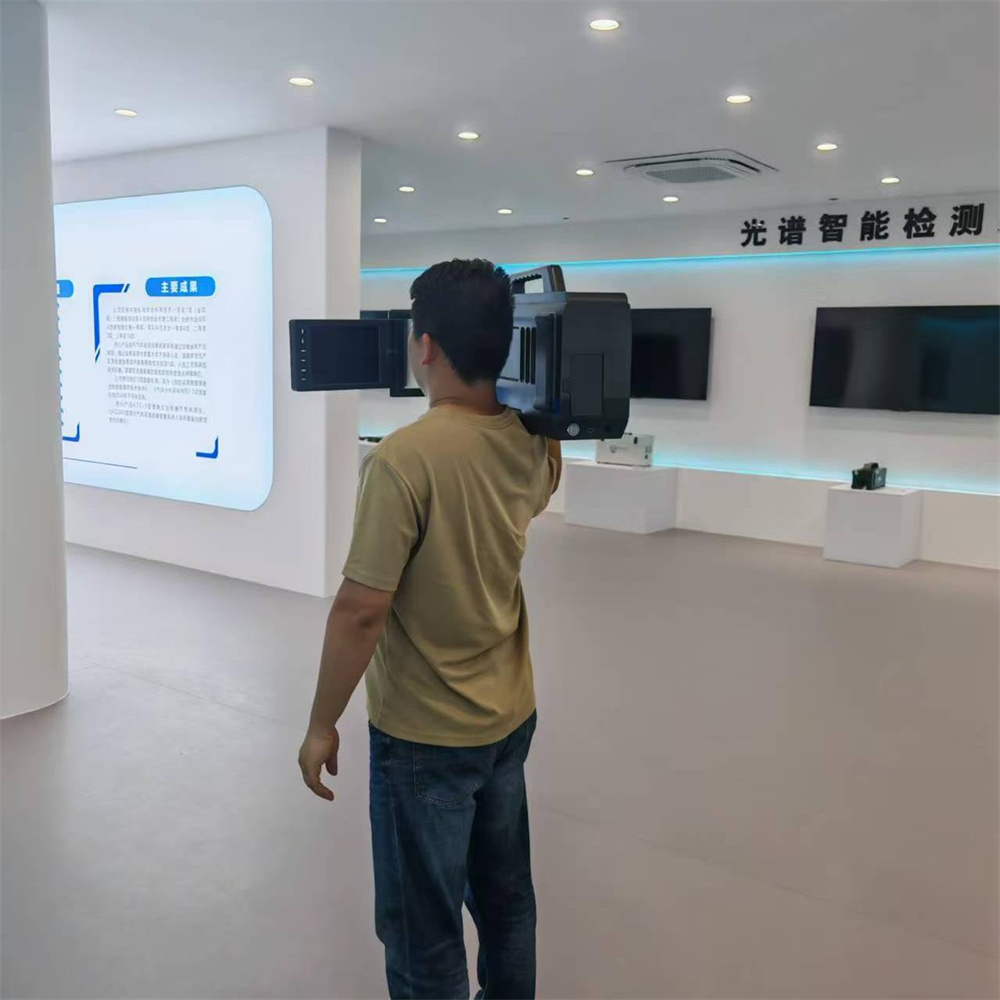

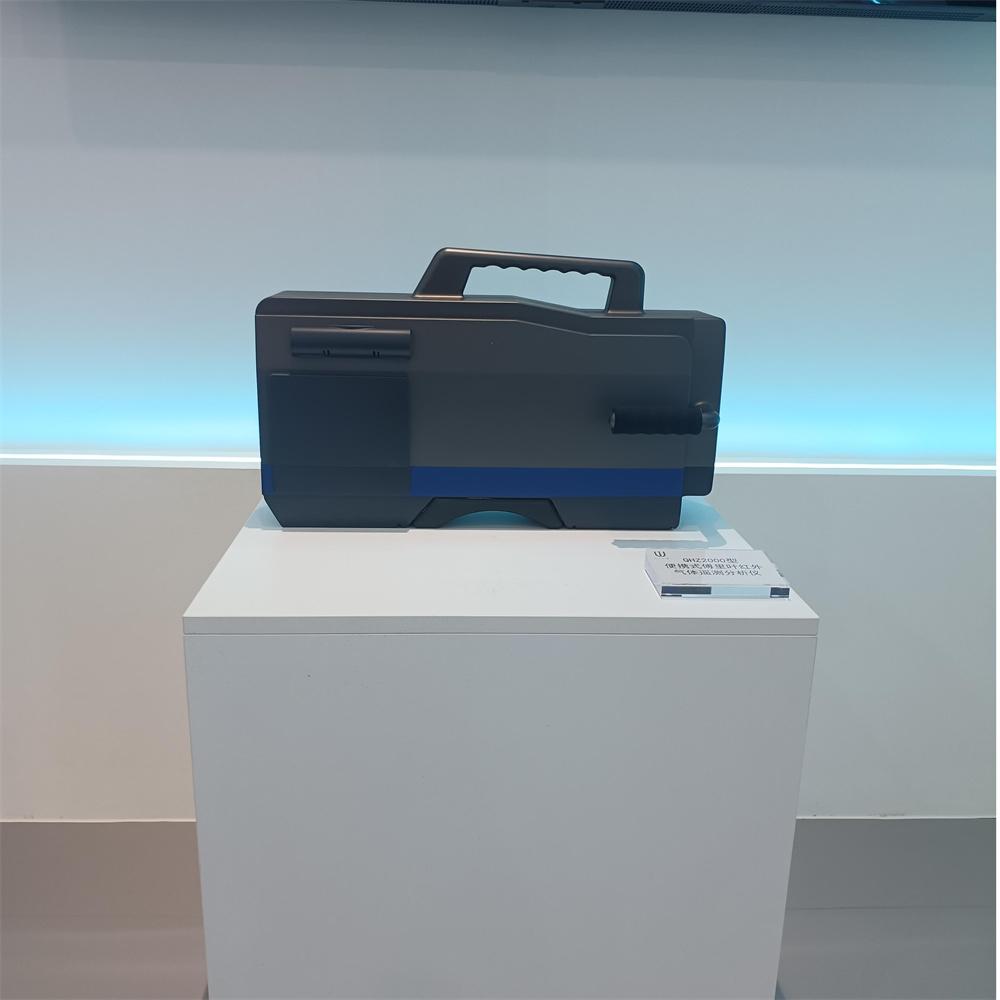

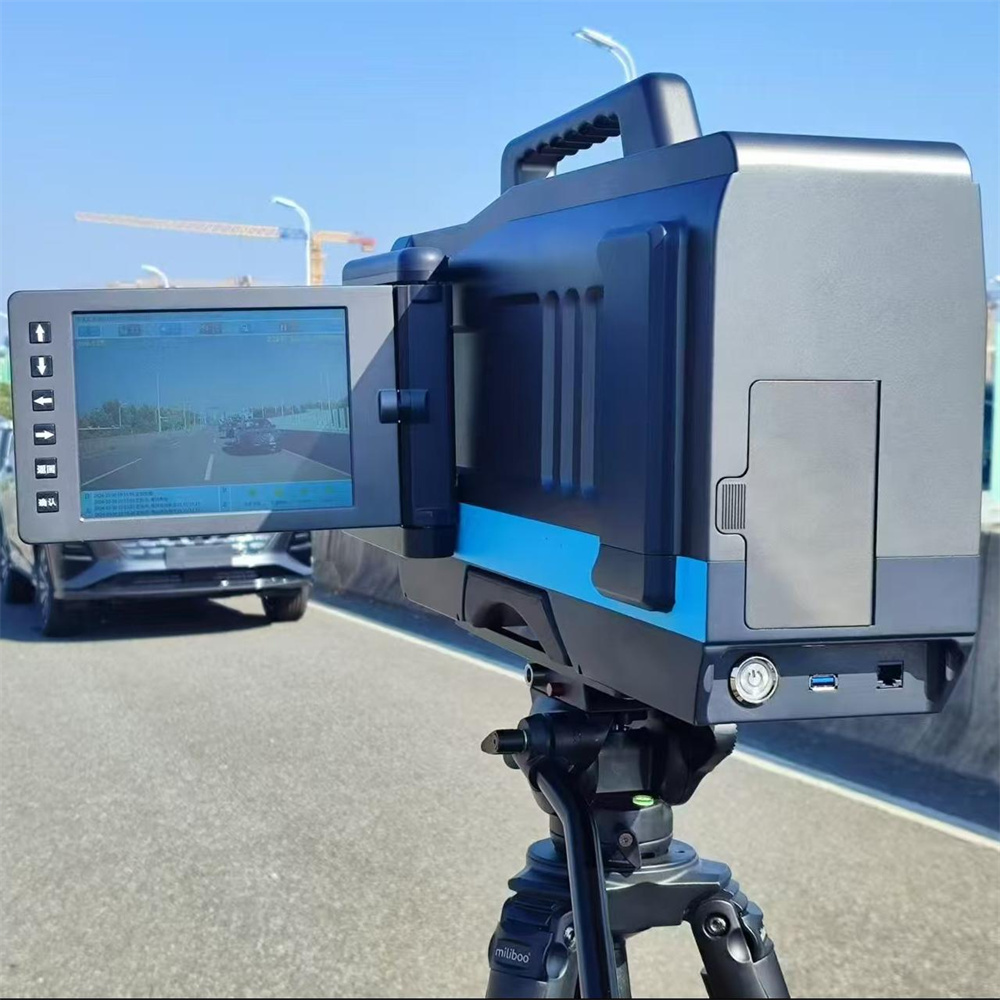

This is our portable type of FTIR gas remote imaging detectors, which can be carried on the shoulder to detect various chemical agents, toxic and harmful, flammable and explosive, and polluting gases. The product has the characteristics of small size, light weight, low power consumption, fast and sensitive, flexible and convenient, safe and efficient. The entire detection process is visualized, and the results are intuitive and eye-catching, suitable for use in different situations. Built in large capacity rechargeable battery, equipped with high-definition LCD touch screen, suitable for single person portable use.
Features
1. One click power on, automatically entering working mode;
2. Remote large-scale non-contact real-time monitoring, visible and measurable;
3. Multiple types of gases can be detected and identified, and mixed gases can be identified simultaneously;
4. Automatic detection, qualitative and quantitative identification;
5. High safety and wide applicability;
6. Small size, light weight, suitable for single person operation;
7. Easy to use, no need for other peripherals or accessories during detection;
8. Full process visualization, real-time graphic and textual display of detection results (gas name, concentration, orientation);
9. Automatic storage of monitoring data, supporting transfer to external devices;
10. Support data query and data reporting.
Main Parameter
| Detecting Gas Types | 60 types, including chemical agents, toxic and harmful gases, flammable and explosive gases, VOCs, etc |
| Maximum Detection Radius | 500m |
| Identify Response Time | ≤2s |
| Spectral Resolution | 4cm-1 |
| Visible Camera | 1080P high-definition low light camera |
|
Cooling Method |
Stirling refrigeration |
| Power Supply Mode | Lithium battery power supply |
| Continuous Working Hours | ≥ 2 hours (battery powered) |
| Data Management | Automatic storage of detection data, supporting transfer to external devices; Support data query and data reporting |
Application
The product can be used in fields such as public safety, environmental protection, safety supervision, fire emergency rescue, petroleum and chemical industry, military counter-terrorism, and judicial on-site evidence collection.
