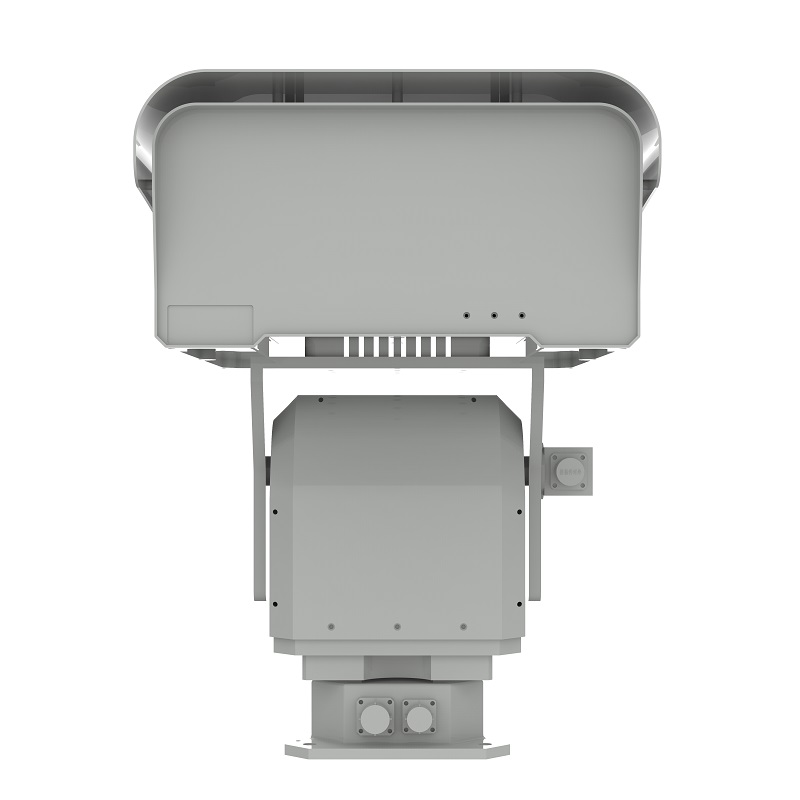

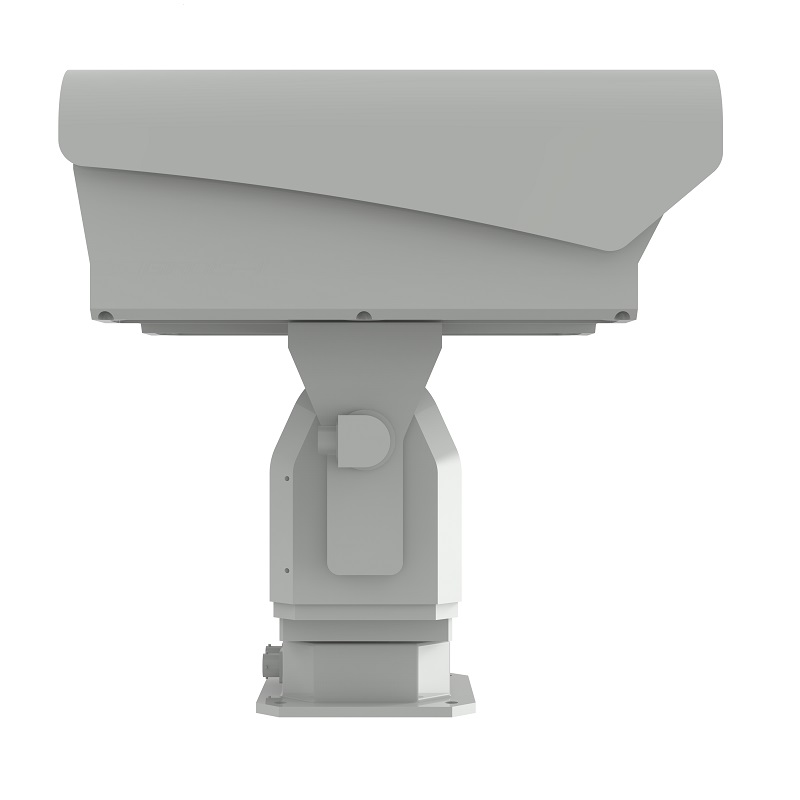

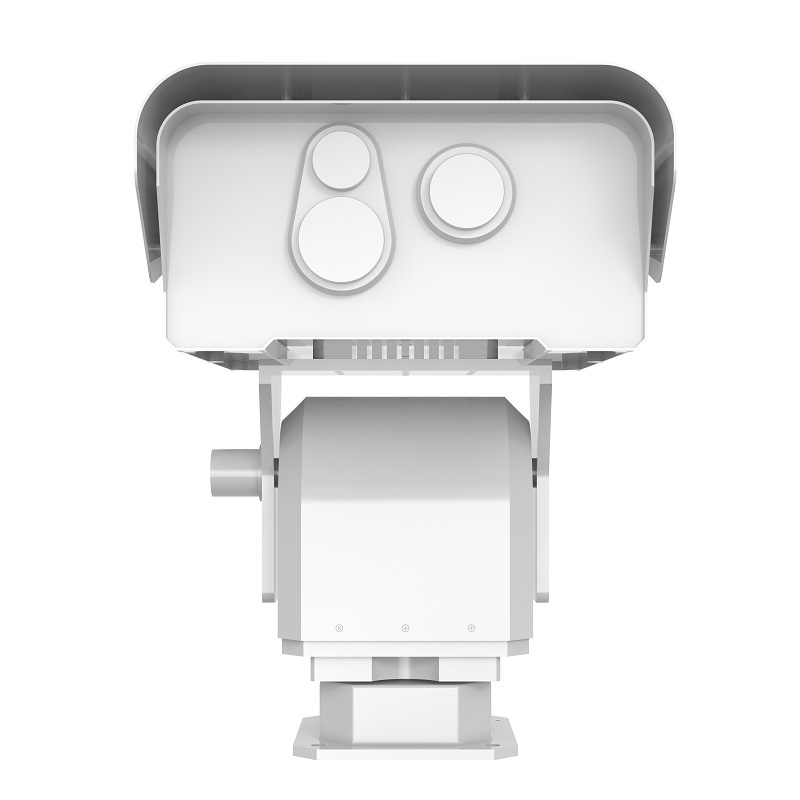

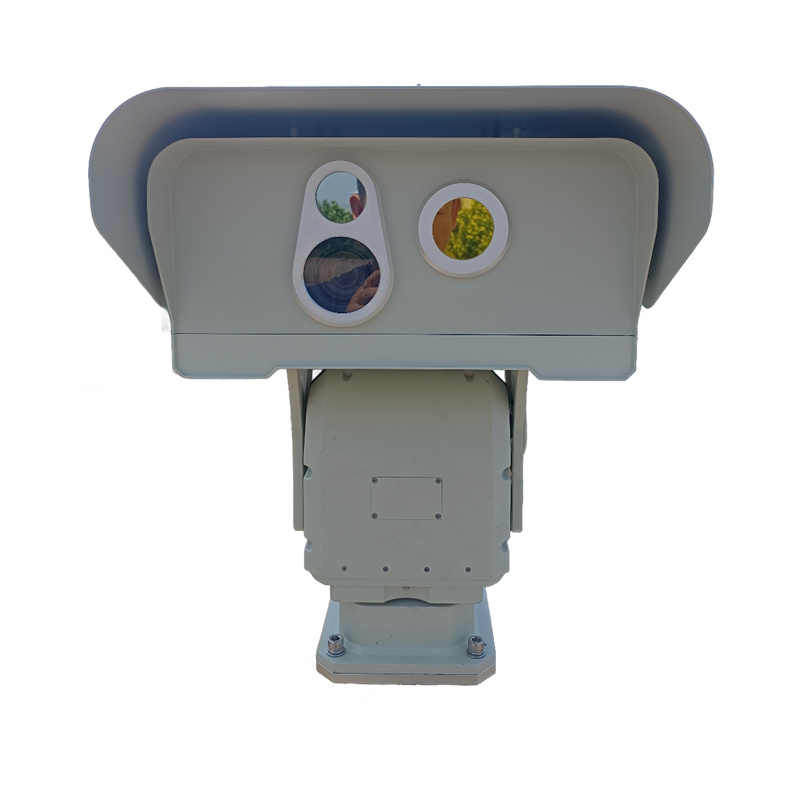

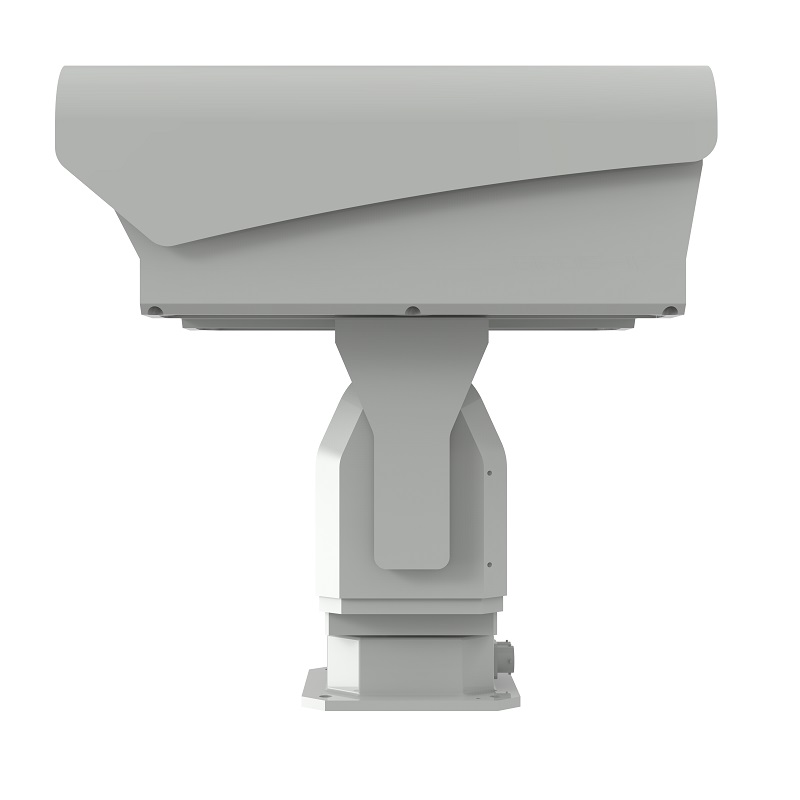

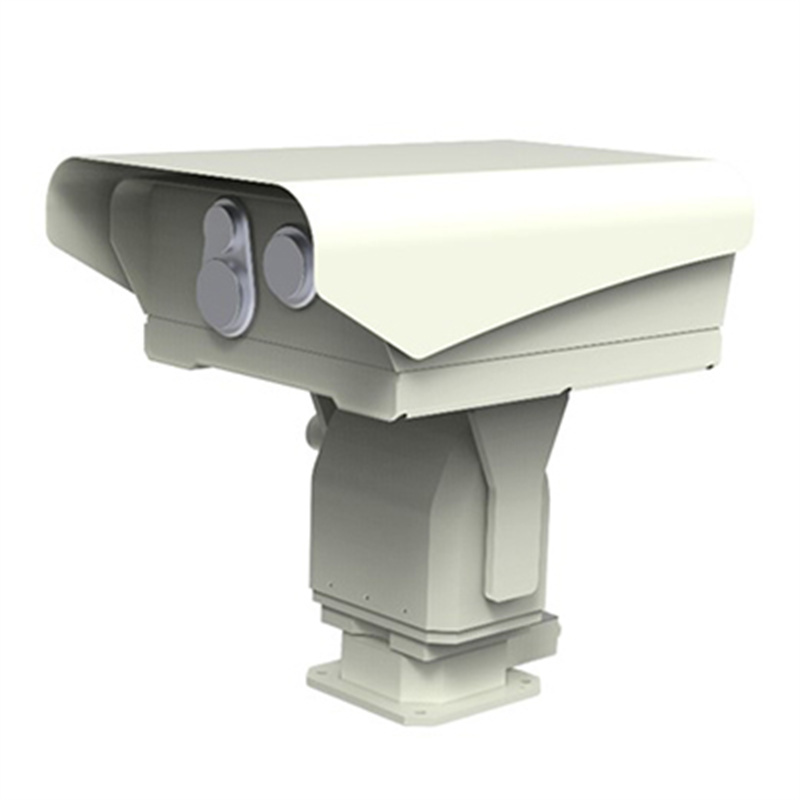

Passive Fixed Type FTIR Standoff Gas Sensing System
Product Introduction
The fixed type of Fourier Transform Infrared Spectroscopy is used to be installed at the higher point of a plant and can carry out non-stop 24*7 hours surveillance within an area of 3-5 kilometers and the single unit can automatically detect more than 500 types of hazardous gases and generate the result in real time. All the components are domestically made in China including the core interferometer.
Features
1. 24*7 non-stop safety checking for the whole plant;
2. Huge gas database and long detection distance;
3. Explosion proof suitable for Zone 1 and Zone 2;
4. 100% domestically made, hold core technology;
5. Support Customization and OEM;
6. Automatic calibration and no need for manual calibration.
Main Parameter
|
Detecting Gas Types |
500 types, including chemical toxic agents, organic compounds such as aromatic hydrocarbons, alkanes, alkenes, alcohols, as well as inorganic compounds such as sulfur dioxide, hydrogen sulfide, hydrogen chloride, and bioaerosols. The detection of gas types supports personalized customization. |
|
Maximum Detection Radius |
5km |
|
Spectral Range |
2μm~16μm |
|
Scanning Range |
Horizontal: 0 °~360 °, Pitch:- 30°~+45° |
|
Alarm Response Time |
≤2s |
|
Spectral Resolution |
1cm-1, 4cm-1, 8cm-1 (adjustable) |
|
Cooling Method |
Stirling refrigeration |
|
Visible Camera |
1080P high-definition low light camera |
|
Infrared Thermal Imager |
Resolution 640 × 512 |
|
Protection Level |
IP65/IP66 |
|
Explosion Proof Level |
Ex db IIC T6 Gb suitable for Zone 1 and Zone 2 |
|
Power Supply Mode |
Dual use of AC and DC: DC24V、AC220V |
Application
Fixed Fourier Transform Infrared (FTIR) gas remote sensing equipment is widely used in industrial site safety monitoring, long-term monitoring of atmospheric pollutants in the environment, monitoring of emissions from fixed pollution sources, monitoring of hazardous chemical storage and municipal facilities and scientific research and monitoring in special scenarios due to its technical advantages such as multi-component simultaneous monitoring, high sensitivity, real-time response, and long-term stability.
