Real Time Rockfall Detection Radar

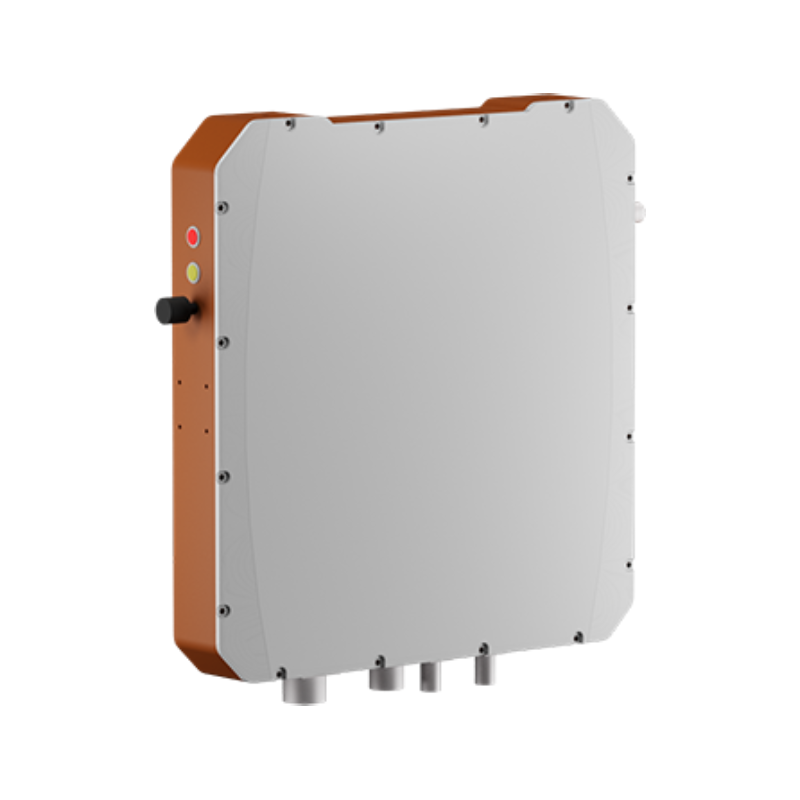

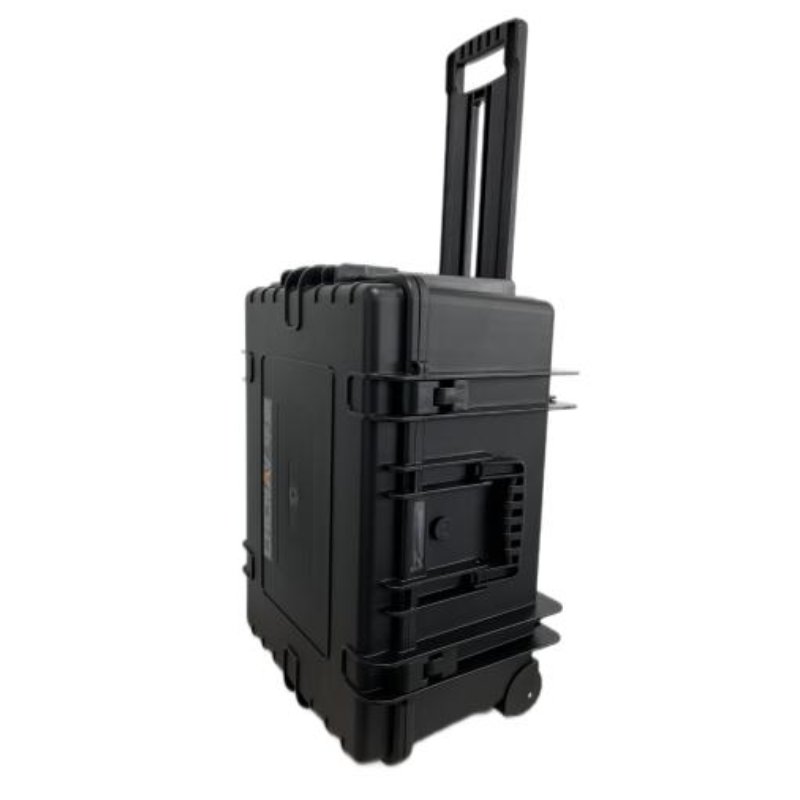

Product Images
Product Introduction
Using MIMO array technology and InSAR interferometry, it features non-contact rapid scanning, all-weather, all-day operation unaffected by clouds, rain, fog, or lighting conditions, quick installation, small size and light weight, three-dimensional fusion display/warning, high reliability and accuracy, waterproof and shockproof design, suitable for harsh outdoor working environments, and can be used for mobile emergency monitoring, fixed long-term monitoring, scientific research, and other applications such as rockfalls on open-pit mine slopes, landslides, railway and highway slope monitoring, and potential landslide sites.
Features
1. Uses active microwave technology, capable of operating all day and in all weather conditions, unaffected by rain, snow, fog, strong sunlight, or nighttime; has good environmental adaptability;
2. Uses a solid-state electronically scanned radar system, covering a 90°×30° field, with no mechanical moving parts during operation, providing data updates at a second-level rate, offering higher reliability and easier maintenance;
3. The system features an integrated, compact design, weighing no more than 5 kg, making it easy to transport and deploy;
4. Low power consumption design, with power usage not exceeding 30W;

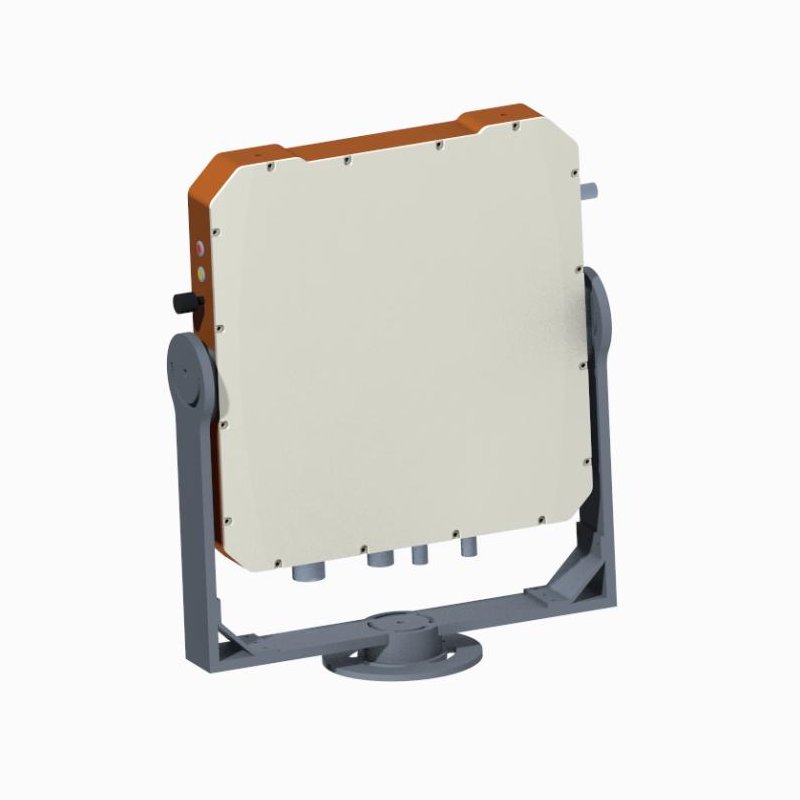

5. Equipped with a two-dimensional turntable, capable of adjusting azimuth and elevation angles;
6. Multi-device coordination capability: can guide electro-optical equipment to point at hazard/alarm areas;
7. 3D display: can import 3D terrain data, with rockfall positions and trajectories directly overlaid on the 3D terrain map;
8. Automatically generates a target monitoring list, including information such as target distance, direction, and speed;
9. The display and control software uses a B/S architecture, can be deployed on a standalone machine or cloud server, offers rich parameter settings, and is simple and intuitive to operate;
10. Can set warning thresholds of level 3 and above, and enables automatic sound and light alarms;
11. Can set alarm zones to effectively filter out false alarms outside the core area;
Technical Parameter
(1) Monitoring distance: 20-1000m
(2) Coverage angle range: 90° (horizontal) × 30° (tilt)
(3) Angular resolution: ≤2°
(4) Distance resolution: ≤5m
(5) Speed resolution: ≤0.1m/s
(6) Angle measurement accuracy: ≤1°
(7) Distance measurement accuracy: ≤3m
(8) Speed measurement accuracy: ≤0.1m/s
(9) Minimum detectable target: ≤0.1m² cross-sectional area
(10) Minimum detectable speed: ≤0.5m/s
(11) Maximum detectable speed: ≥30m/s
(12) Maximum detectable number of targets: ≥50
(13) Data update rate: ≥2Hz
(14) Power consumption: ≤30W
(15) Radar host weight: ≤5KG
(16) Environmental protection: IP65
(17) Communication method: Wired LAN
(18) Power supply: 220VAC / 24V DC
(19) Operating temperature: -40 ~ +55℃
(20) Storage temperature: -40 ~ +65℃
Application
Compared to conventional methods such as manual visual inspection and photoelectric camera monitoring, this equipment is well adapted to harsh weather conditions like rain, snow, and fog, as well as low-light conditions at night. It has a wide coverage area and high detection rate, effectively addressing challenges such as the sudden occurrence of geological hazards, extremely short warning times, and difficulty in detection. Rockfall and debris flow radar can be used for:
1. Long-term and short term monitoring of falling rocks on open-pit mine slopes, landslides, rocks along railroad and highway slopes, and potential landslide sites
2. Emergency rescue use to help ensure the safety of rescue operations, construction personnel, and equipment
3. Scientific research
