Slope & Bridge Monitoring Radar
0102030405

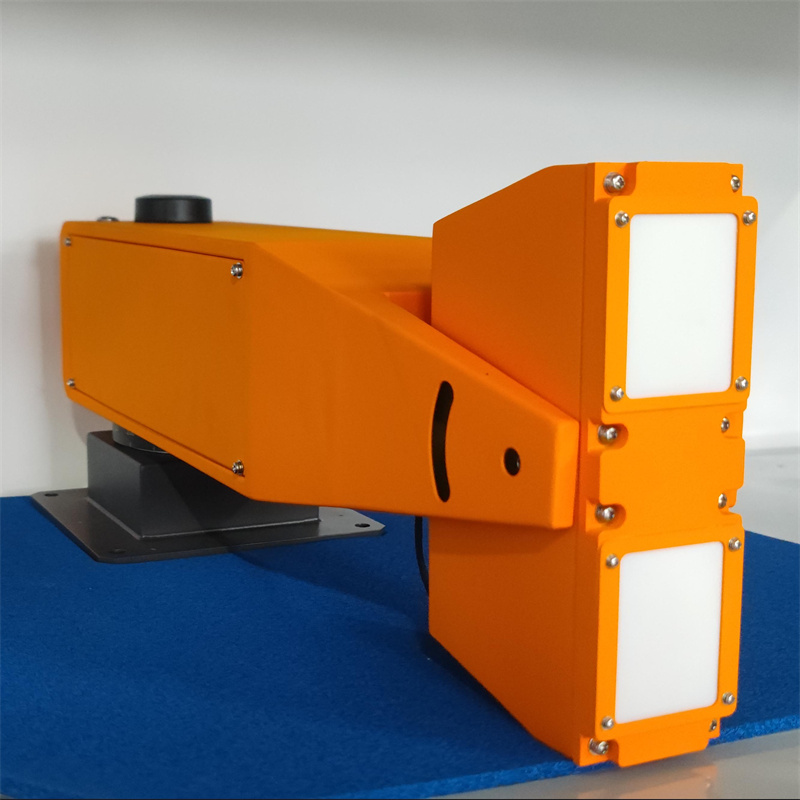

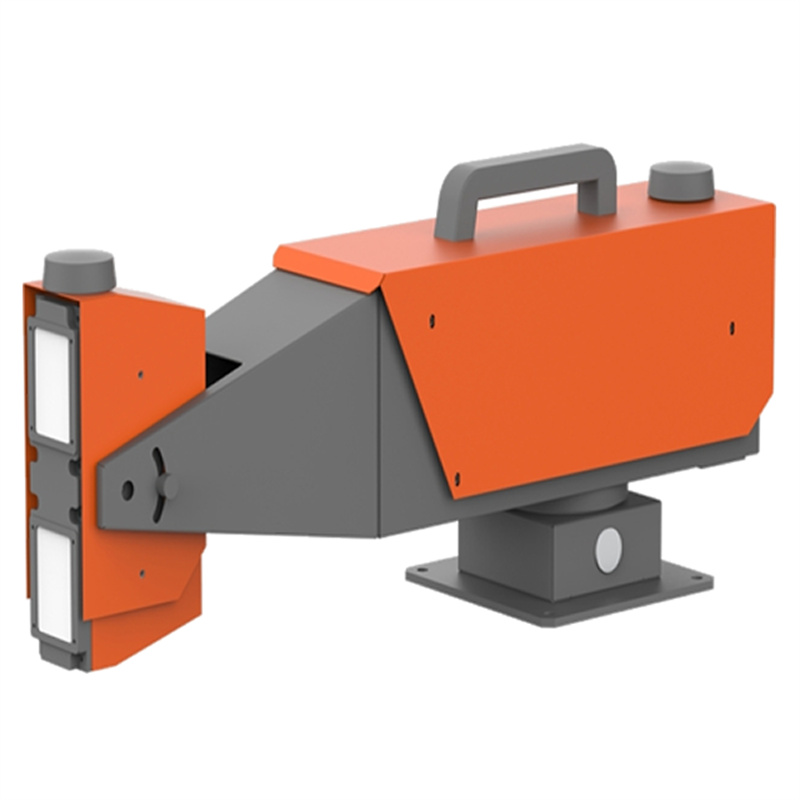

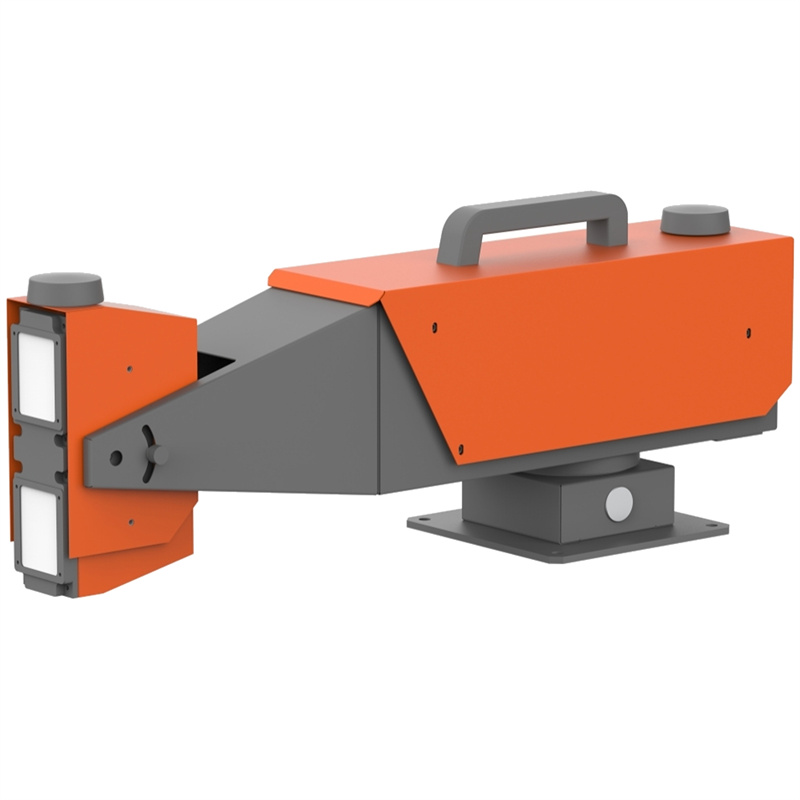

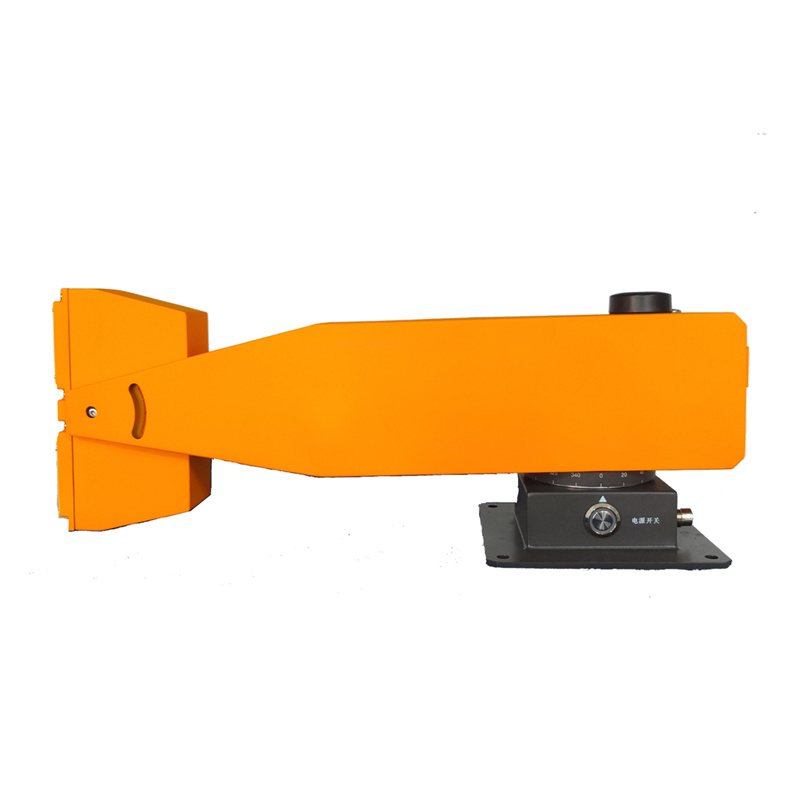

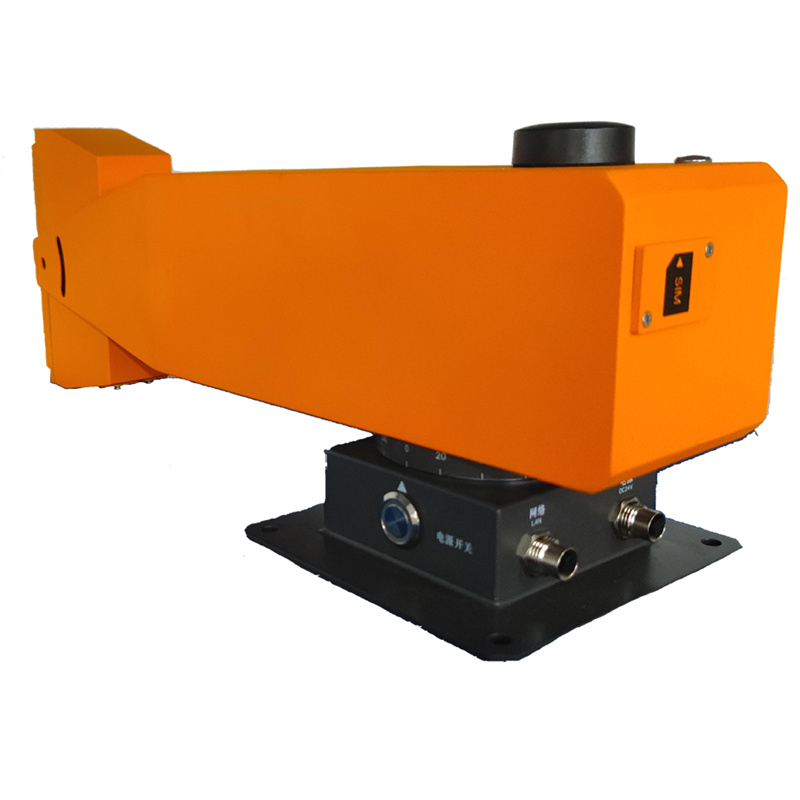

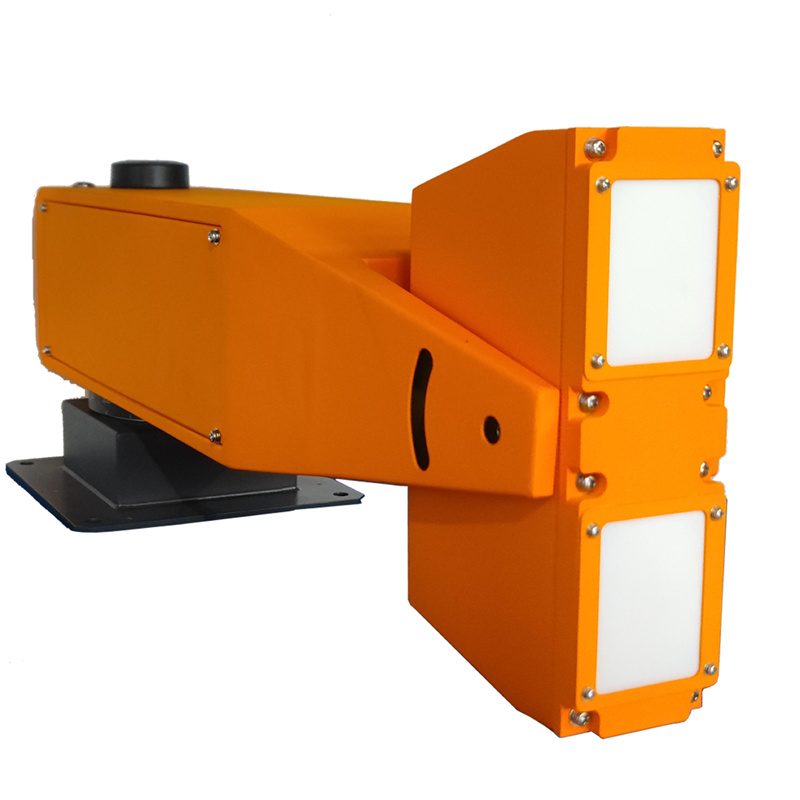

Slope Stability Radar Slide Detection
Product Introduction
This product is based on synthetic aperture radar imaging technology and interferometry/differential interferometry technology, specifically designed for emergency and regular monitoring and early warning of geological hazard risk points such as landslides, collapses, and cave-ins. It features a low-cost, low-power design with advantages including 360° comprehensive coverage, sub-millimeter level deformation measurement and all-weather, all-day non-contact remote sensing scanning.
At the same time, this device is specifically designed to meet the demands of "long-term online, unattended" monitoring of geological disaster hazard points. It focuses on automation, ultra-low power consumption, multi-radar access, multiple power supply methods, and multi-platform access designs. Additionally, it integrates a variable-focus visual sensor for regular inspections and key position observations to assist in judgment. It can perform surface, multi-point, long-distance, and long-term monitoring and scanning of observation scenarios (geological disaster hazard points, water conservancy projects, railway highways, and other geological bodies and major engineering projects) to achieve long-term unattended monitoring and automated early warning.
Features
1. Wide applicability: suitable for emergency response and long-term monitoring in areas with geological disaster hazards.
2. Strong microwave penetration, capable of all-weather monitoring, unaffected by rain, snow, fog, smoke, or firelight.
3. No protective framework needed: resistant to outdoor wind, sun, rain, dust, and heavy snow, with no requirement for a monitoring house.
4. Adaptive atmospheric disturbance compensation algorithm to eliminate the effects of long-term monitoring disturbances.
5. Employs arc imaging and continuous wave radar systems, allowing for 360° monitoring with no angle or distance blind spots.
6. 24/7 operation: continuous scanning.
7. Three-dimensional fusion: sub-meter level registration.
8. All-weather, full-surface monitoring.
9. Automatic judgment and alert system, unmanned operation.
10. IP65 protection; operational in low temperatures down to -40°C.
Main Parameter
|
SN |
Description | Parameter |
|
1 |
Operating frequency band | Ku |
|
2 |
Maximum distance | ≥800m |
|
3 |
Coverage angle | ≥360°(horizontal or specified sector) × 40° (elevation) |
|
4 |
Deformation accuracy | ≤0.5mm (any angle within 360° azimuth) |
|
5 |
Distance resolution | ≤0.3m |
|
6 |
Azimuth resolution | ≤9mrad |
|
7 |
Data acquisition cycle | ≤1min |
|
8 |
Elevation adjustment angle | ≥±45° |
|
9 |
Data upload cycle | Configurable from 1min to 24h |
|
10 |
Overall power consumption | ≤20W |
|
11 |
Overall weight | ≤5.5kg |
|
12 |
Maximum size of radar host | ≤0.6m |
|
13 |
Operating temperature | -20~55℃ |
|
14 |
Protection level | IP65 |
|
15 |
Radar host | built-in 4G wireless (optional) and wired communication functions |
|
16 |
The radar host | uses edge computing to perform deformation calculations internally, eliminating the need for a workstation. |
Application
This equipment can continuously and accurately monitor and provide timely alerts for slopes, dams, mountains, buildings, and other sites at rescue scenes, mitigating the safety threats posed by secondary disasters to rescuers and their equipment; it can also be used for long-term monitoring of mines, geological disaster risk points, water conservancy facilities, and more.
