FTIR Gas Remote Sensing
01

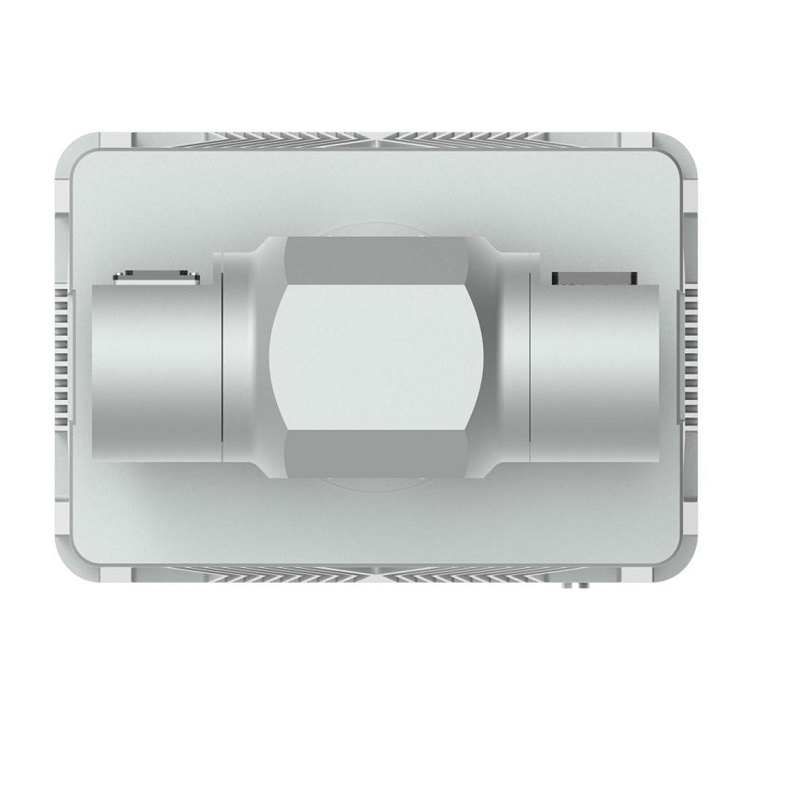

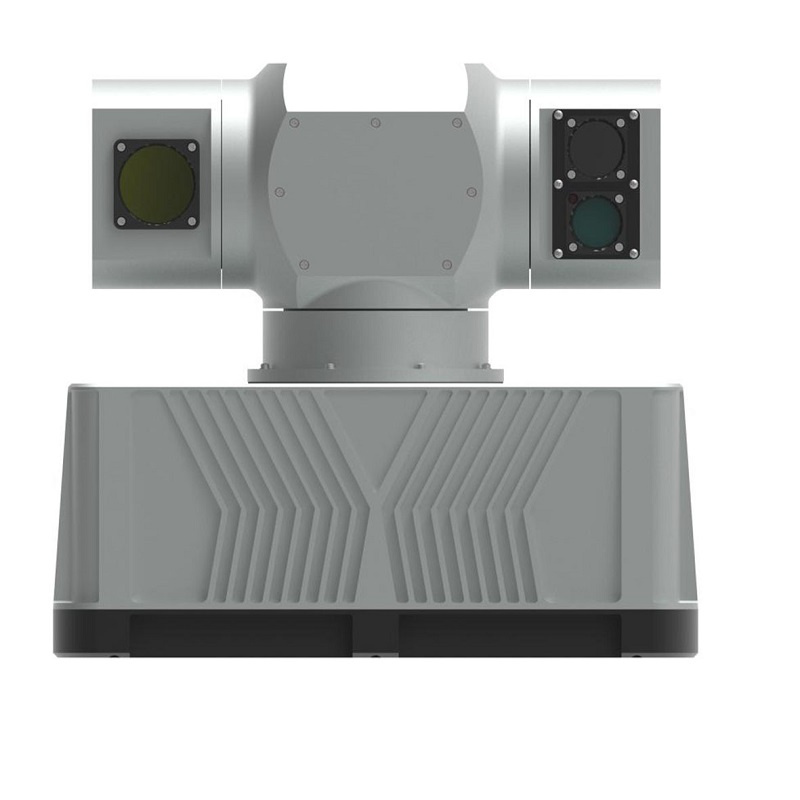

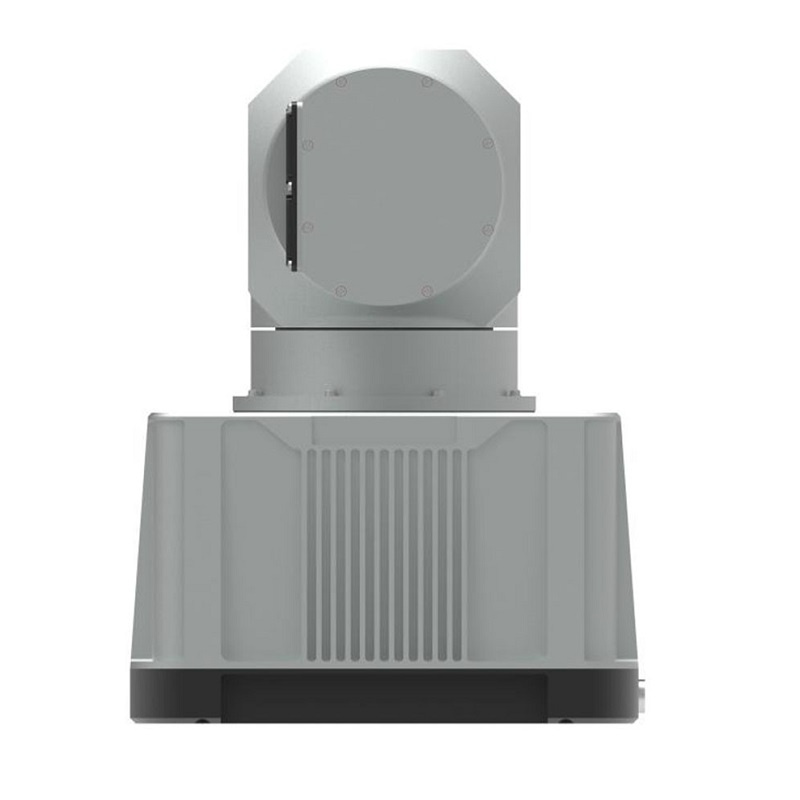

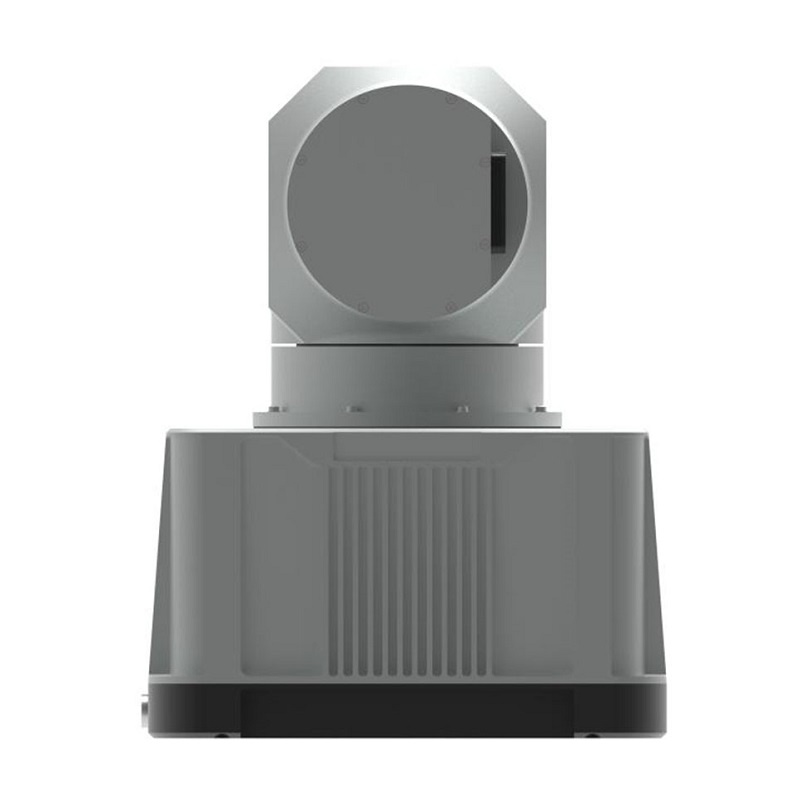

UAV Mounting FTIR-based Long Distance Gas Sensing System
Product Introduction
The drone-mounted FTIR gas sensing device integrates FTIR technology with unmanned aerial vehicle (UAV) platforms, enabling efficient and flexible remote sensing of hazardous gases in complex environments. It’s small and portable with powerful functions to detect 500 types of gases from the air, having a detection distance of 3 kilometers.
Features
1. UAV mounted device, flexible and safe;
2. Easy deployment and use;
3. Fast identification, location of gas leakage ;
4. Day and night use, ideal for hard to reach areas;
5. Support Customization and OEM;
Main Parameter
|
Detecting Gas Types |
500 types, including chemical toxic agents, organic compounds such as aromatic hydrocarbons, alkanes, alkenes, alcohols, as well as inorganic compounds such as sulfur dioxide, hydrogen sulfide, hydrogen chloride, and bioaerosols. The detection of gas types supports personalized customization. |
|
Maximum Detection Radius |
3km |
|
Spectral Range |
7μm~14μm |
|
Scanning Range |
Horizontal 0 °~360 °, pitch -90 °~+90 ° |
|
Alarm Response Time |
≤2s |
|
Spectral Resolution |
1cm-1, 4cm-1(adjustable) |
|
Cooling Method |
Stirling Refrigeration |
|
Visible Camera |
1080P high-definition low light camera |
|
Infrared Thermal Imager |
Resolution 640 × 512 |
|
Protection Level |
IP65/IP66 |
|
Power Supply Mode |
Dual use of AC and DC: DC24V、AC220V |
Application
The drone-mounted FTIR gas telemetry device serves a range of critical application scenarios with distinct target users and monitoring objectives:
In industrial safety management, it is primarily deployed by plant operators, safety inspectors, and industrial hygiene teams. Key targets include large chemical parks, refineries, and petrochemical facilities, where it monitors for leaks of toxic gases (e.g., ammonia, chlorine) and flammable vapors (e.g., methane, propane) across production lines, storage tanks, and pipeline networks—especially in hard-to-reach areas like elevated structures or remote plant perimeters.
For environmental emergency response, it supports emergency services, environmental agencies, and disaster relief teams. During incidents such as chemical spills, gas explosions, or hazardous material leaks, the device targets gas plumes to track their spread, assess contamination ranges, and identify affected zones—critical for guiding evacuation efforts and emergency resource deployment.
In pollution source investigation, environmental monitoring institutions and regulatory bodies use the device to target suspected emission points, such as factory exhausts, waste treatment sites, or illegal dumping areas. It helps quantify gas emissions, verify compliance with environmental standards, and pinpoint sources of unauthorized or excessive gas releases—strengthening pollution control and regulatory enforcement.
